FST-650L Intelligent Irrigation System: Precise Water Control with 40% Energy Savings, Empowering Smart Agriculture

Application Background:

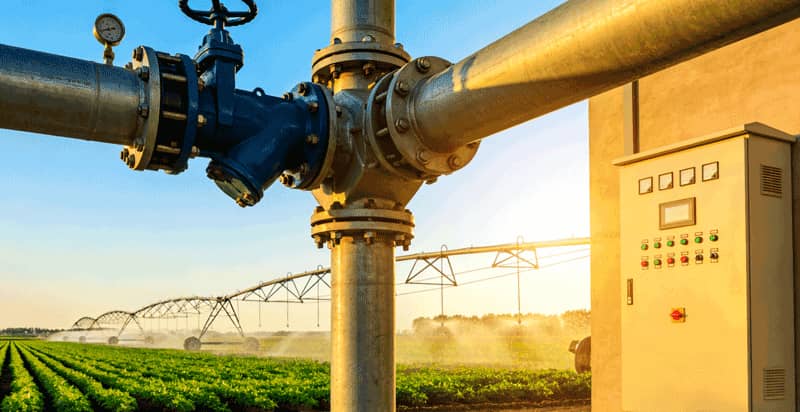

A large-scale agricultural demonstration park, covering over 500 acres of greenhouse and open-field crops including vegetables, fruits, and cash crops, faced several challenges with its original irrigation system:

High Energy Consumption: Pump motors ran at full speed continuously, while actual water demand was only 60%-70% of rated flow

Pressure Instability: Pipeline pressure fluctuated dramatically with varying water demand, affecting sprinkler uniformity

Water Hammer Impact: Direct motor starting caused severe water hammer effects, leading to frequent pipeline joint leaks

Manual Dependency: Required dedicated personnel to adjust valves manually, preventing automated management

Solution


FST-650L Intelligent Variable Frequency Constant Pressure Irrigation System

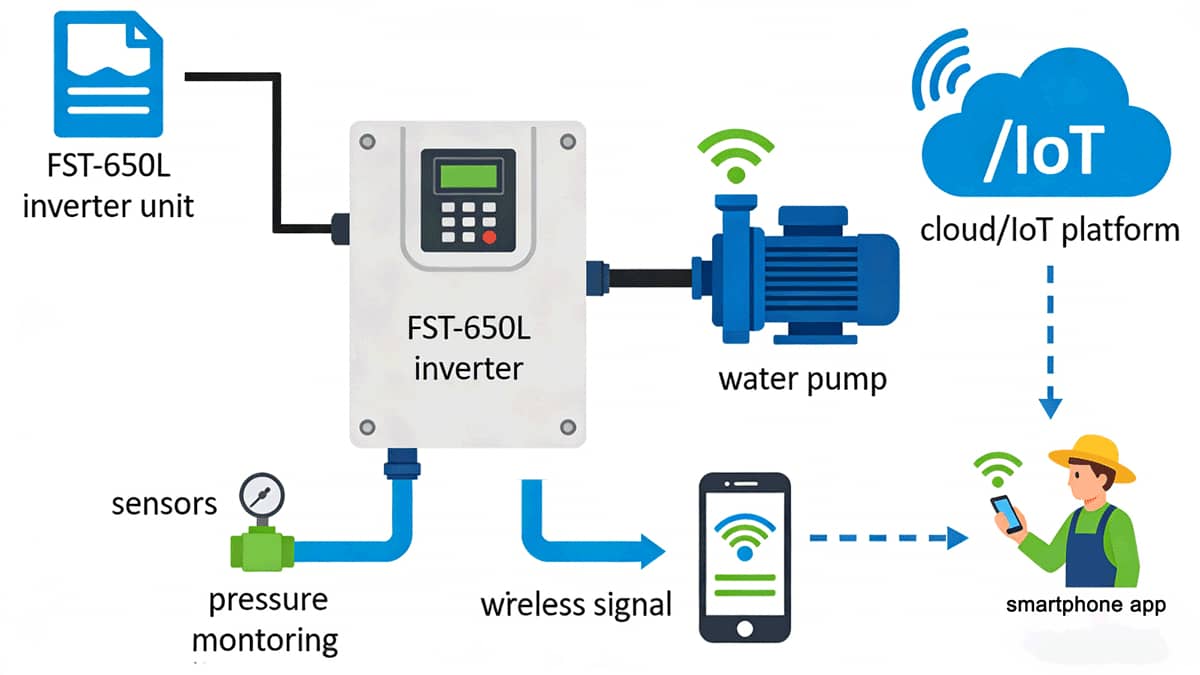

System Architecture

Core Control: FST-650L-037G/045P Inverter (37kW/45kW) driving the main pump

Sensor Network: Pressure transmitters installed at pipeline endpoints, collecting real-time 0-10V analog signals

Intelligent Algorithm: Built-in PID closed-loop control automatically adjusts pump speed to maintain constant pressure

Remote Monitoring: Integrated RS485 communication interface connected to the park's IoT management platform

Technical Highlights

1. Vector Control Technology: The FST-650L utilizes advanced SPWM modulation technology with high low-frequency torque, ensuring sufficient head even at reduced speeds to accommodate elevation differences across various irrigation zones.

2. Constant Pressure Water Supply: Through pressure sensor feedback, the inverter automatically calculates network demand and adjusts output frequency (20Hz-50Hz), stabilizing main pipeline pressure within ±0.02MPa of the setpoint.

3. Sleep/Wake Function: During nighttime or low-temperature periods when irrigation demand decreases, the system automatically enters sleep mode; sensors trigger millisecond-level wake-up when water demand is detected, eliminating frequent motor starts/stops.

4. Multi-Protection Mechanism: Comprehensive overvoltage, undervoltage, overload, short circuit, and dry-run protection ensures reliable operation in harsh outdoor agricultural environments.

Application Results

After a full irrigation season of operation, the system demonstrated significant benefits:

Energy Savings

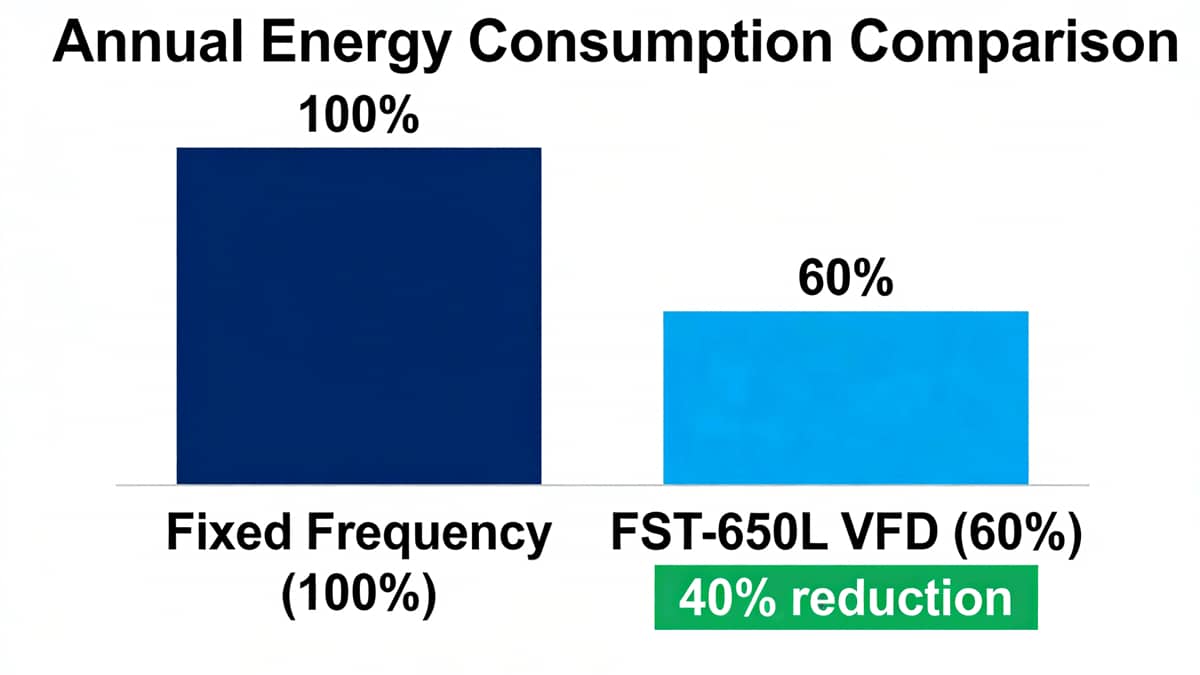

Overall energy savings of 35%-42% compared to fixed-frequency operation

Single 37kW pump saves approximately 18,000 kWh annually, reducing electricity costs by $2,200 USD

Investment payback period of only 7 months

Improved Irrigation Quality


Stable pipeline pressure with sprinkler uniformity exceeding 92%

Elimination of water hammer effects, reducing pipeline maintenance by 80%

Precise irrigation implementation, improving water utilization efficiency by 30%

Intelligent Management


Mobile APP remote monitoring for real-time pressure, flow, and energy consumption data

Automatic fault alarming, reducing maintenance response time by 70%

Multiple preset irrigation programs enabling unattended automatic rotation irrigation

Industry Value

The successful application of FST-650L in agricultural irrigation demonstrates Anyhz inverters' core advantages in harsh environment adaptability and precise control. With IP54 protection rating, it resists greenhouse humidity and field dust; the user-friendly parameter interface allows farmers to operate without professional training.

This solution is suitable not only for large-scale farms but also flexibly scalable to small and medium-sized irrigation systems, providing reliable power support for water-saving and efficiency improvements in smart agriculture.
