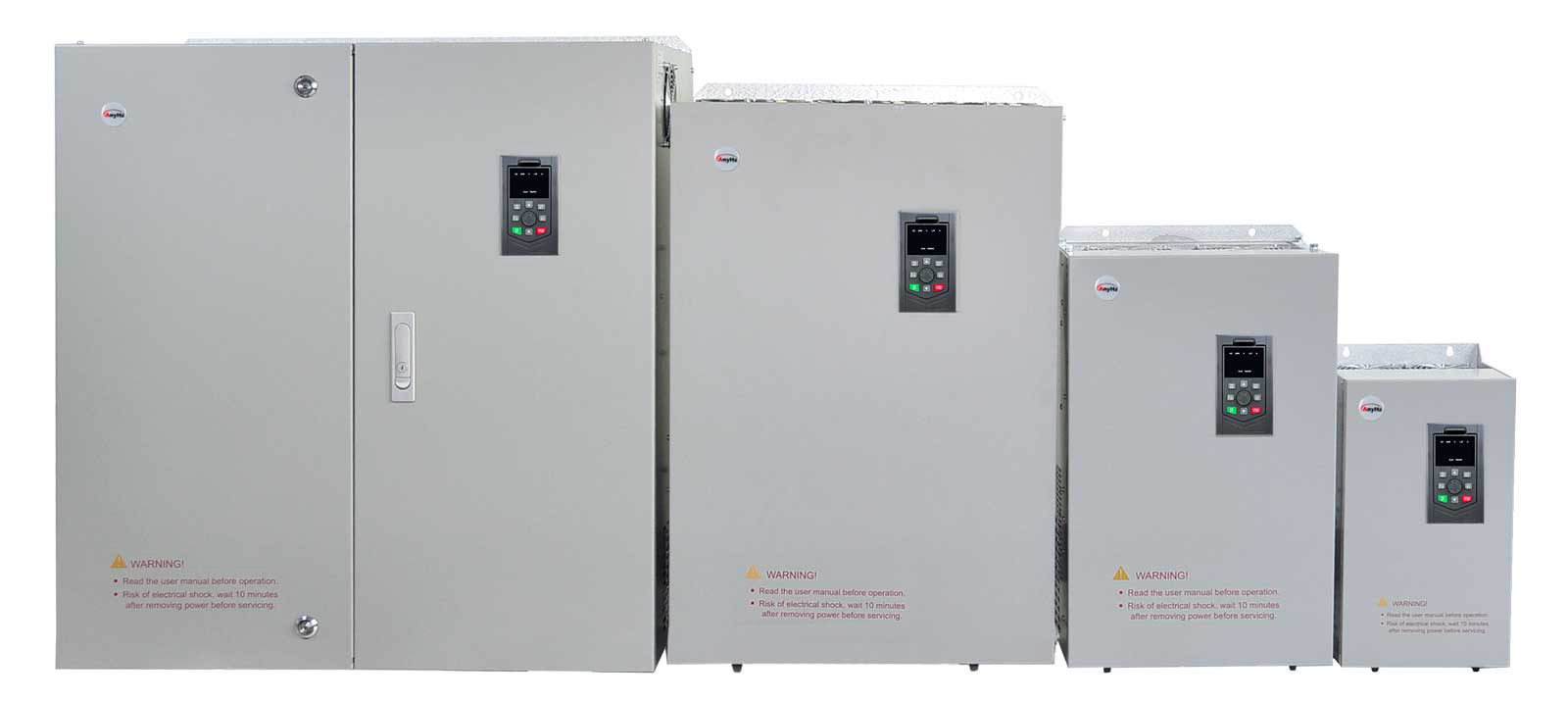

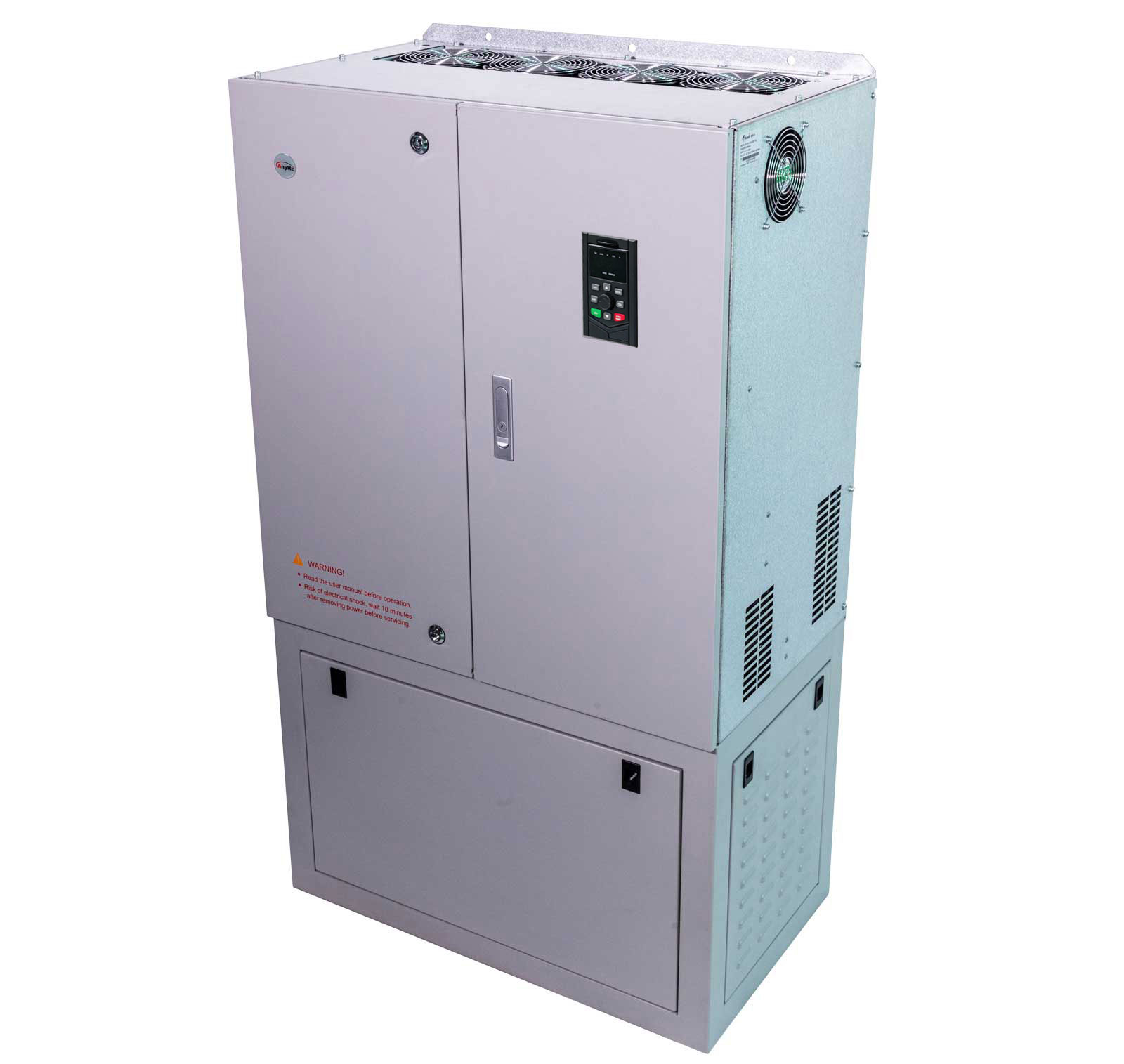

Product Card 1: FST-650L Special High-Performance Vector Inverter for Mining
| Item |
Content |
|
Product Image
|
|
|
Power Range
|
0.75kW - 630kW (Low Voltage 380V/660V)
|
|
Application Scenarios
|
Belt Conveyor, Crusher, Ball Mill, Slurry Pump, Dust Removal Fan
|
|
Core Features
|
① 180% rated torque output at 0.5Hz, ensuring worry-free heavy-load startup② IP20 protection grade + three-proof paint coating, adapting to dusty, humid and corrosive ground environments③ 150% overload capacity for 60 seconds, resisting impact loads from ores④ Master-slave control function for automatic power balance in multi-machine drive systems⑤ Support optical fiber communication for stable long-distance signal transmission
|
|
Certification Standards
|
CE / ISO9001
|
|
Learn More
|
[https://www.anyhz.com/product/fst-650l.html]
|
Revised Technical Parameter Quick Reference Table
Low-Voltage Inverters (Ground Equipment)
| Parameter |
FST-650L |
FST-810 |
|
Power Range
|
0.75kW - 630kW
|
0.75kW - 315kW
|
|
Voltage Level
|
380V / 660V
|
380V
|
|
Control Mode
|
Vector Control (Open/Closed Loop)
|
Vector Control (Open/Closed Loop)
|
|
Speed Regulation Range
|
1:100
|
1:100
|
|
Starting Torque
|
180% / 0.5Hz
|
200% / 0Hz (Zero-speed Holding)
|
|
Overload Capacity
|
150% / 60s
|
200% / 10s
|
|
Protection Grade
|
IP20
|
IP20
|
|
Communication Interface
|
RS485
|
RS485
|
|
Master-Slave Control
|
Supported (Up to 8 Units)
|
Supported
|
|
Energy Feedback
|
Optional
|
Optional
|
|
Typical Applications
|
Belt Conveyor, Crusher, Ball Mill, Pump, Fan
|
Stacker-Reclaimer, Crane, Loading Machine
|
High-Voltage Inverter (High-Power Fan)
| Parameter |
High-Voltage Inverter 6kV/10kV |
|
Power Range
|
200kW - 10000kW
|
|
Voltage Level
|
6kV / 10kV
|
|
Topology Structure
|
Unit Series Multi-level
|
|
Grid-side Harmonic
|
<3% (No Additional Filter Required)
|
|
Power Factor
|
>0.95
|
|
System Efficiency
|
>96%
|
|
Control Mode
|
Vector Control
|
|
Flying Start
|
Supported
|
|
Redundancy Design
|
Dual Control Power Supply + Dual Control Board + Unit Bypass
|
|
Communication Interface
|
Modbus / Profibus / DCS Docking
|
|
Typical Applications
|
Blast Furnace Blower, Sintering Dust Removal Fan, Converter Dust Removal Fan
|
Chapter 1: Industry Pain Points (Unchanged)
| Icon |
Title |
Description |
|
⚡
|
High Energy Cost Ratio
|
Power consumption of crushing, grinding, fan and pump equipment accounts for 30%-50% of the total mining cost, which is the core of energy saving
|
|
?
|
Severe Load Fluctuation
|
The particle size and hardness of ore vary greatly, causing frequent heavy-load startup of equipment and severe grid impact
|
|
?
|
High Equipment Failure Rate
|
Harsh working conditions with heavy dust, strong vibration and large temperature difference lead to easy damage of ordinary inverters and frequent maintenance
|
|
?
|
Extensive Process Control
|
Traditional power frequency operation cannot adjust in real time according to working conditions, making it difficult to balance production capacity and energy consumption
|
Chapter 2: AnyHz Solution
Solution A: Open-pit Mine Belt Conveying System
Schematic Diagram Suggestion: Draw the complete conveying link from open-pit mining face → crushing station → long-distance belt conveyor → concentrator, and mark the installation position of inverters. Note: Special for ground equipment, distinguished from underground mine equipment
Application Scenarios
-
Long-distance belt conveyor from stope to crushing station
-
Material stacking belt from crushing station to concentrator
-
Transfer belts between various processes in concentrator
-
Loading belts for finished ore/tailings yard
Core Control Strategy
| Control Function |
Technical Implementation |
Application Value |
|
Multi-machine Drive Power Balance
|
Master-slave control of multiple inverters, real-time adjustment of output torque of each motor to ensure uniform load distribution
|
Avoid single motor overload and prolong the service life of belts and rollers
|
|
Heavy-load Soft Start
|
Vector control outputs 180% rated torque at 0.5Hz with S-curve acceleration to eliminate startup impact
|
Reduce startup current to below 1.5 times the rated current and protect the power grid
|
|
Material Flow Adaptive Speed Regulation
|
Access belt scale/radar level gauge signals to automatically adjust belt speed to match material flow
|
Automatically reduce speed under no-load or light-load conditions, achieving 20%-35% energy saving
|
|
Tension Closed-loop Control
|
Feedback from tension sensor, automatically adjust driving torque to maintain constant tension
|
Prevent belt slippage or over-tension
|
|
Deviation/Slippage Protection
|
Encoder speed feedback to monitor belt operation status in real time
|
Stop within 0.2 seconds in case of faults to reduce accident losses
|
Technical Highlights
-
High-torque Startup: FST-650L vector control easily copes with full-load ore startup
-
Environment Adaptability: IP20 protection grade matched with three-proof coating, suitable for open-pit mine ground working conditions with dust and humidity
-
Wide Voltage Adaptation: Stable operation within ±20% fluctuation of 380V voltage, adapting to poor power grid quality in mines
-
Long-distance Communication: Support optical fiber communication to solve long-distance signal transmission problems from stope to central control room
-
Ground Equipment Exclusive Design: Designed for open-pit mine ground working conditions, applicable to belt conveyors, crushing stations, concentrators and other ground scenarios
Solution B: Crushing and Grinding System
Schematic Diagram Suggestion: Draw the crushing station process flow chart (Feeder → Jaw Crusher → Cone Crusher → Vibrating Screen → Ball Mill → Classifier), and mark the inverter installation position of each equipment
Application Scenarios
-
Jaw Crusher / Cone Crusher / Impact Crusher
-
Ball Mill / Semi-autogenous Mill / Vertical Mill
-
Vibrating Screen / Classifier
Core Control Strategy
| Equipment |
Control Mode |
Energy Saving/Efficiency Improvement Principle |
|
Crusher
|
Material Level-Speed Linkage
|
Automatically adjust the speed of feeding belt and crusher according to the material level in the crushing cavity to avoid material blockage and idling
|
|
Ball Mill
|
Power-Load Optimization
|
Monitor mill power in real time and automatically adjust the speed to the optimal load point to improve grinding efficiency
|
|
Classifier
|
Overflow Concentration Closed-loop
|
Adjust speed automatically according to overflow concentration to ensure stable classification particle size
|
|
Vibrating Screen
|
Variable Frequency Speed Regulation
|
Adjust vibration frequency according to material characteristics to improve screening efficiency and reduce energy consumption
|
Technical Highlights
-
Impact Resistance Design: FST-650L has 150% overload capacity for 60 seconds to cope with load impact caused by sudden changes in ore hardness
-
Low-speed High Torque: Output 180% rated torque at 0.5Hz to meet the heavy-load startup demand of ball mills
-
Optional Energy Feedback: Realize four-quadrant operation to feed back potential energy to the power grid when the ball mill lowers materials
-
Vibration Suppression Algorithm: Built-in torque fluctuation suppression function to reduce mechanical vibration of equipment
Solution C: Concentrator Pump and Dewatering System
Schematic Diagram Suggestion: Draw the concentrator water system flow chart (Tailings Pump → Thickener → Filter Press → Return Water Pump), and display variable frequency control nodes
Application Scenarios
-
Slurry Pump (Tailings Transportation, Concentrate Transportation)
-
Underflow Pump / Overflow Pump
-
Filter Press Feed Pump
-
Circulating Water Pump / Return Water Pump
Core Control Strategy
| Pump Type |
Control Mode |
Application Value |
|
Slurry Pump
|
Flow-speed Closed-loop
|
Automatically adjust speed according to pipeline flow meter or thickener material level to avoid pipeline wear and energy waste
|
|
Underflow Pump
|
Concentration-speed Linkage
|
Automatically adjust speed according to underflow concentration to ensure stable discharge of thickener underflow
|
|
Filter Press Feed Pump
|
Pressure Gradient Control
|
Automatically boost pressure according to the set pressure curve to improve filtration efficiency and reduce filter cloth loss
|
|
Circulating Water Pump
|
Liquid Level-speed Control
|
Automatically adjust speed according to pool liquid level to maintain constant liquid level and reduce overflow and water replenishment
|
Technical Highlights
-
Corrosion Resistance Design: FST-650L can be equipped with anti-corrosion coating to adapt to corrosive slurry environment
-
Cavitation Suppression: Intelligent speed regulation avoids pump operation in cavitation area and prolongs the service life of impeller and pump casing
-
Redundancy Design: Automatic switching of one-use one-standby mode, standby pump is put into operation within 0.5 seconds in case of fault
-
Remote Monitoring: HMI centralized monitoring of all pump unit operating status, supporting mobile APP remote inspection
Solution D: Smelter Fan and Dust Removal System
Schematic Diagram Suggestion: Draw the smelter dust removal system layout (Blast Furnace → Hot Blast Stove → Converter → Dust Removal Fan → Chimney), and mark the installation position of high-voltage inverters
Application Scenarios
-
Blast Furnace Blower / Hot Blast Stove Combustion-supporting Fan
-
Sintering Head/Tail Dust Removal Fan
-
Converter Primary/Secondary Dust Removal Fan
-
Flue Gas Desulfurization Induced Fan / Denitrification Fan
Core Control Strategy
| Fan Type |
Control Mode |
Energy Saving/Environmental Protection Value |
|
Blast Furnace Blower
|
Constant Air Volume/Constant Air Pressure Control
|
Automatically adjust air volume according to furnace conditions to reduce coke ratio and improve smelting efficiency
|
|
Dust Removal Fan
|
Furnace Front/Rear Linked Speed Regulation
|
Automatically reduce speed during non-tapping/non-steel-making periods, achieving 40%-60% energy saving
|
|
Sintering Dust Removal
|
Head-tail Differential Pressure Control
|
Automatically adjust dust removal air volume according to sintering machine speed to ensure capture efficiency
|
|
Desulfurization Induced Fan
|
SO₂ Concentration Closed-loop
|
Real-time adjustment of air volume according to flue gas SO₂ concentration, balancing environmental compliance and energy saving
|
Technical Highlights
-
High-power Coverage: 6kV/10kV high-voltage inverters cover 200kW-10000kW, meeting the needs of large fans
-
Fast Dynamic Response: Torque response <10ms, adapting to sharp air volume changes during converter oxygen blowing
-
Harmonic Suppression: Multi-pulse PWM technology, grid-side harmonic <3%, no additional filter device required
-
High Reliability: Dual redundant power supply + dual redundant control board to ensure continuous smelting production
Chapter 3: Recommended Products (Revised)
Product Card 1: FST-650L Special High-Performance Vector Inverter for Mining
| Item |
Content |
|
Product Image
|
|
|
Power Range
|
0.75kW - 630kW (Low Voltage 380V/660V)
|
|
Application Scenarios
|
Belt Conveyor, Crusher, Ball Mill, Slurry Pump, Dust Removal Fan
|
|
Core Features
|
① 180% rated torque output at 0.5Hz, ensuring worry-free heavy-load startup② IP20 protection grade + three-proof paint coating, adapting to dusty, humid and corrosive ground environments③ 150% overload capacity for 60 seconds, resisting impact loads from ores④ Master-slave control function for automatic power balance in multi-machine drive systems⑤ Support optical fiber communication for stable long-distance signal transmission
|
|
Certification Standards
|
CE / ISO9001
|
|
Learn More
|
[https://www.anyhz.com/product/fst-650l.html]
|
Product Card 2: High-Voltage Inverter 6kV/10kV High-Power Drive
| Item |
Content |
|
Product Image
|
|
|
Power Range
|
200kW - 10000kW (6kV/10kV)
|
|
Application Scenarios
|
Blast Furnace Blower, Sintering Dust Removal Fan, Converter Dust Removal Fan, Main Exhaust Fan
|
|
Core Features
|
① Unit series multi-level topology with grid-side harmonic <3%② Dual redundant control + dual redundant power supply with 99.9% reliability③ Four-quadrant operation supporting energy feedback④ Flying start function to directly capture and start freely rotating fans⑤ Modular design, automatic unit bypass in case of failure without affecting operation
|
|
Certification Standards
|
CE / ISO9001 / National High-Voltage Electrical Inspection Report
|
|
Learn More
|
[https://www.anyhz.com/product/high-voltage-drive.html]
|

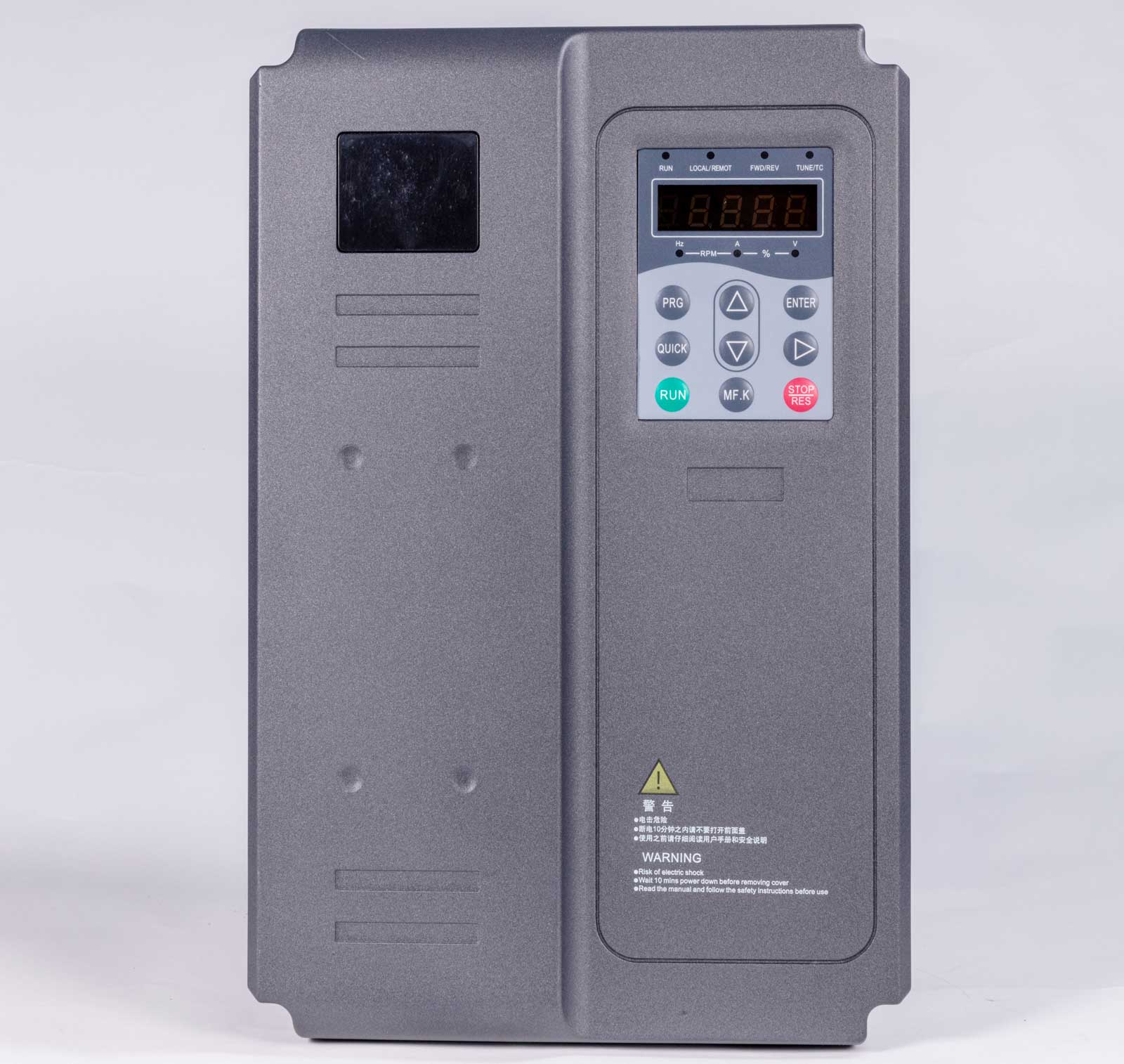

Product Card 3: FST-810 Special Inverter for Lifting/Heavy Load
| Item |
Content |
|
Product Image
|
|
|
Power Range
|
0.75kW - 315kW
|
|
Application Scenarios
|
Stacker-Reclaimer, Loading Machine, Bridge Crane, Gantry Crane
|
|
Core Features
|
① Specially designed for lifting heavy loads with 150% torque holding at zero speed② Anti-sway function, automatic brake holding in case of brake failure③ Automatic switching of light-load high speed/heavy-load low speed to improve operation efficiency④ Support main and auxiliary hook linkage, trolley and gantry synchronous control
|
Product Card 4: HMI Mine Monitoring Touch Screen
| Item |
Content |
|
Product Image
|
|
|
Size Specification
|
7-inch / 10.1-inch
|
|
Application Scenarios
|
Crushing Station Central Control Room, Concentrator Central Control Room, Smelter Dispatch Room
|
|
Core Features
|
① Real-time display of equipment current, speed, temperature, vibration data② Automatic generation of energy consumption statistics and shift/daily/monthly reports③ Fault alarm push to mobile APP④ Support video monitoring integration, full scene control on one screen
|
|
Learn More
|
[https://www.anyhz.com/product/hmi-display-screen.html]
|
Chapter 4: Application Cases (Unchanged)
Case A: Energy Saving Renovation of Belt Conveying System in a Large Open-pit Iron Mine
Tags: Open-pit Mine | Long-distance Belt | Multi-machine Drive | 32% Energy Saving
Project Overview
| Item |
Details |
|
Project Location
|
A large open-pit iron mine in North China
|
|
Annual Output
|
20 million tons of iron ore
|
|
Renovated Equipment
|
3.5km long-distance belt conveyor from stope to crushing station (4×315kW drive)
|
Solution
| Equipment |
Model |
Quantity |
Control Strategy |
|
Main Drive Motor
|
FST-650L-315G/355PT4
|
4 Sets
|
Master-slave control, power balance
|
|
Material Flow Detection
|
Radar Level Gauge + Belt Scale
|
2 Sets
|
Real-time material flow monitoring
|
|
Centralized Monitoring
|
10.1-inch HMI Touch Screen
|
1 Set
|
Remote monitoring and energy consumption statistics
|
Renovation Effect
| Indicator |
Before Renovation |
After Renovation |
Improvement |
|
Average Belt Operating Power
|
820kW
|
560kW
|
↓32%
|
|
Startup Current Peak
|
6 Times Rated
|
1.4 Times Rated
|
↓77%
|
|
Annual Power Saving
|
-
|
-
|
About 2.28 million kWh
|
|
Annual Electricity Cost Saving
|
-
|
-
|
About 1.6 million RMB/Year
|
|
Belt Joint Replacement Cycle
|
8 Months
|
18 Months
|
2.3 Times Extension
|
|
Roller Bearing Failure Rate
|
6 Times/Year on Average
|
1 Time/Year on Average
|
↓83%
|
|
Investment Payback Period
|
-
|
-
|
16 Months
|
Customer Evaluation
"Long-distance belts are most afraid of startup impact and uneven power distribution. AnyHz's multi-machine master-slave control is very stable, with four motors outputting basically the same power. The automatic speed reduction to 30% under no-load conditions saves a lot of power." — Chief Engineer of Mechanical and Electrical Department of the Mine
View More Cases →
Case B: High-Voltage Frequency Conversion Renovation of Dust Removal Fan in a Copper Smelter
Tags: Smelter | Converter Dust Removal | High-Voltage Frequency Conversion | 48% Energy Saving
Project Overview
| Item |
Details |
|
Project Location
|
A large copper smelter in Central China
|
|
Smelting Capacity
|
400,000 tons of cathode copper/Year
|
|
Renovated Equipment
|
Converter primary dust removal fan (10kV/2500kW) + converter secondary dust removal fan (10kV/1800kW)
|
Solution
| Equipment |
Model |
Quantity |
Control Strategy |
|
Primary Dust Removal Fan
|
10kV/2500kW High-Voltage Inverter
|
1 Set
|
Linked speed regulation with converter oxygen blowing signal
|
|
Secondary Dust Removal Fan
|
10kV/1800kW High-Voltage Inverter
|
1 Set
|
Automatic wind speed switching before/after furnace operation
|
|
Monitoring System
|
10.1-inch HMI + Upper Computer
|
1 Set
|
Seamless docking with DCS system
|
Operation Logic
-
Non-oxygen blowing period (charging, copper discharging, waiting): Primary fan speed reduced to 30%, secondary fan speed reduced to 40%
-
Oxygen blowing period: Automatically adjust speed to 60%-100% according to oxygen blowing intensity
-
Copper discharging period: Secondary fan speed increased to 80% to strengthen dust capture
Renovation Effect
| Indicator |
Before Renovation |
After Renovation |
Improvement |
|
Annual Power Consumption of Primary Fan
|
16.8 million kWh
|
8.2 million kWh
|
↓51%
|
|
Annual Power Consumption of Secondary Fan
|
12.1 million kWh
|
6.7 million kWh
|
↓45%
|
|
Comprehensive Energy Saving Rate
|
-
|
-
|
↓48%
|
|
Annual Electricity Cost Saving
|
-
|
-
|
About 7.7 million RMB/Year
|
|
Dust Emission Concentration
|
45mg/m³
|
18mg/m³
|
↓60%
|
|
Investment Payback Period
|
-
|
-
|
14 Months
|
Customer Evaluation
"Before the renovation, the fans ran at full speed all year round, resulting in high electricity costs. Now the fans only run at full speed during oxygen blowing and automatically reduce speed in other periods, saving more than 7 million yuan a year. The emission also meets the standard, and there has been no problem in environmental protection inspection." — Director of Power Workshop of the Plant
View More Cases →
Chapter 5: Bottom CTA
Customized High-efficiency Energy Saving Solutions for Mining and Metallurgy Enterprises
AnyHz has been deeply engaged in the mining and metallurgy industry for more than ten years, serving more than 300 ground production system projects in total. We provide full-life cycle services including scheme design, equipment selection, installation and commissioning, and after-sales operation and maintenance.
Contact Us
